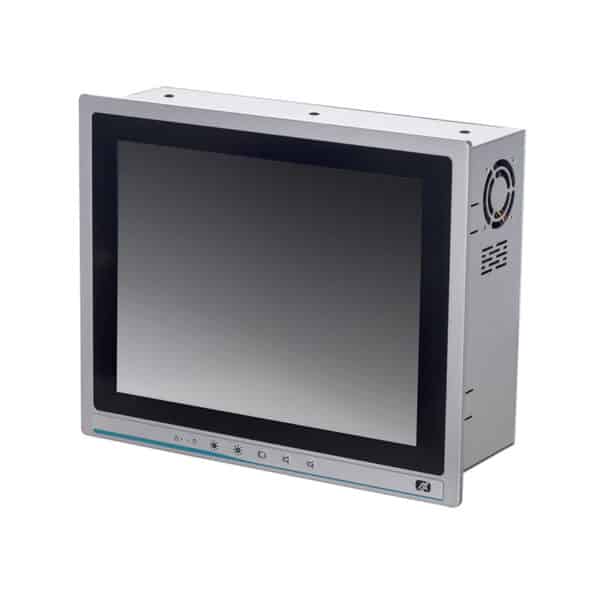

P1127E-500

12.1″ XGA TFT Expandable Industrial Touch Panel Computer with

7th/6th Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium®

Processor and PCI/PCIe Slot

international standard

Category: Touch Panel PC

Features

12.1″ XGA TFT LCD display
LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
Intel® H110 chipset
Less screw design for easy installation
4 USB 3.0, 2 USB 2.0 and 4 COM
One PCIe x4 or one PCI slot
Built-in speakers and optional Wi-Fi 802.11 b/g/n module
Robust IP65 compliant aluminum front bezel
Supports 5 OSD keys in the front panel

A Plus Serve ตัวแทนจำหน่ายสินค้าและอุปกรณ์ คอมพิวเตอร์เกรดอุตสาหกรรม สินค้าคุณภาพ ผลิตจากประเทศญี่ปุ่นและไต้หวัน

LCD Panel	12.1" XGA TFT LCD 500 nits 1024 x 768 pixels
CPU	LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
Chipset	Intel® H110
System Memory	2 x 288-pin Long-DIMM DDR4-2133, up to 32GB
BIOS	AMI
COM	3 x RS-232 1 x RS-232/422/485
USB	4 x USB 3.0 2 x USB 2.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i219-LM/i211-AT)
Display	1 x HDMI 1 x VGA 1 x DisplayPort
Audio	1 x Audio (Mic-in & Line-out)
Storage	1 x 2.5" SATA HDD (9.5 mm height)
Expansion	1 x PCIe x4 or 1 x PCI
Others	1 x Remote power switch
Touchscreen	5-wire resistive type
Front Bezel	Aluminum w/ IP65/NEMA 4 rugged protection
Power Supply	100 to 240 VAC, 200W
Power Comsumption	121W
Watchdog Timer	255 levels, 1 to 255 sec.
Operating Temperature	0°C to +50°C (+32°F to +122°F)
Relative Humidity	10% to 90% @ +40°C, non-considering
Vibration	1.0G, 5 - 500 Hz, random
Dimensions (W x D x H)	314.2 x 105 x 253.7 mm (12.37" x 4.13" x 9.99")
Weight (net/gross)	4.2 kg (9.26 lb)/6.3 kg (13.89 lb)
Certifications	CE
EOS	Skylake: Windows® 7/8.1/10 Kaby Lake: Windows® 10
Mounting	VESA mount Wall mount Desktop stand
