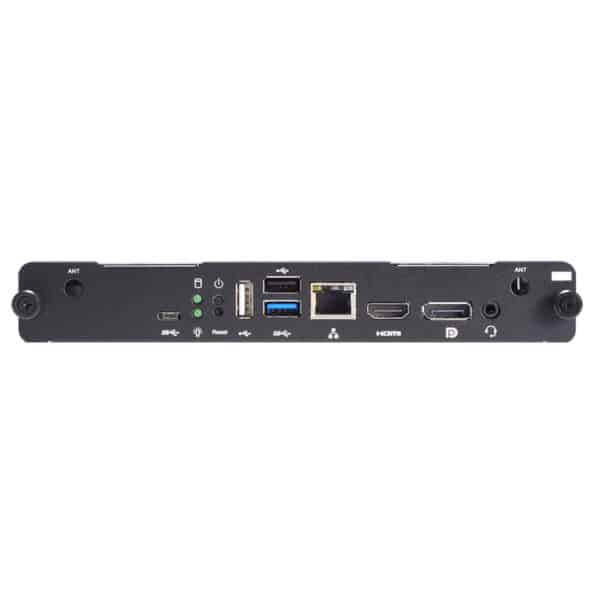

    Open Pluggable Specification (OPS) Digital Signage Player with

    LGA1200 Socket 11th/10th Gen Intel® Core™ i7/i5/i3 or Celeron®

    Processor, Intel® Q570/H510, and TPM 2.0

    ops520-international standard



    Datasheet (PDF)
    Category:

    Features

    • Intel® Open Pluggable Specification (OPS compliance)
    • LGA1200 Socket 11th/10th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor (Rocket Lake)
    • 2 DDR4-2933 SO-DIMM for up to 64GB of memory
    • 1 M.2 Key M 2280 for NVMe storage
    • 1 M.2 Key E 2230 for Wi-Fi/BT solution
    • Supports USB 3.2 Gen2
    • Supports Intel vPro® platform (Intel® Q570 only)
    • Supports TPM 2.0
    • Easy installation and maintenance



    A Plus Serve ตัวแทนจำหน่ายสินค้าและอุปกรณ์ คอมพิวเตอร์เกรดอุตสาหกรรม สินค้าคุณภาพ ผลิตจากประเทศญี่ปุ่นและไต้หวัน

    CPU
    • LGA1200 Socket 11th/10th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (Rocket Lake), 35W TDP
    Chipset
    • Intel® H510/Q570
    System Memory
    • 2 x DDR4-2933 SO-DIMM, up to 64GB
    BIOS
    • AMI
    COM
    • N/A
    USB
    • 1 x USB 3.2 Gen2 (Intel® Q570) or 1 x USB 3.2 Gen1 (Intel® H510)
    • 1 x USB Type C
    • 2 x USB 2.0
    Ethernet
    • 1 x 10/100/1000 Mbps Ethernet (Intel® i219-LM)
    Display
    • 1 x HDMI 2.0
    • 1 x DisplayPort 1.4
    Audio
    • 1 x Audio jack (combo)
    HRS Connector
    • N/A
    JAE Connector
    • 1 x DisplayPort with 4K, 60Hz
    • 1 x HDMI 2.0 with 4K, 60Hz (30Hz for 10th gen Intel® processor)
    • 2 x USB 2.0
    • 1 x USB 3.2 Gen1
    • 1 x Audio (Line-out)
    • 1 x UART (TX/RX)
    TPM
    • TPM 2.0
    Storage
    • 1 x M.2 Key M 2280 (NVMe)
    Expansion
    • 1 x M.2 Key E 2230 for Wi-Fi
    Power
    • 1 kg (2.21 lb)/1.5 kg (3.3 lb)
    Watchdog Timer
    • 255 levels, 1 to 255 sec./min.
    Operating Temperature
    • 0°C to +45°C (+32°F to +113°F) (with airflow 1.2m/s)
    Dimensions
    (W x D x H)
    • 200 x 119 x 30 mm (7.87” x 4.68” x 1.18”)
    Weight (net/gross)
    • 1 kg (2.21 lb)/1.5 kg (3.3 lb)
    Certifications
    • CE, FCC Class A
