Features
- LGA1700 12th gen Intel® Core™ i9/i7/i5/i3 processor
- Intel® H610 chipset
- 2 DDR4 SO-DIMM for up to 64GB memory
- 2 USB 3.2 Gen1 and 5 USB 2.0
- 2.5GbE LAN and 4 COM ports
- 1 PCIe x16, 1 M.2 Key E, and 1 M.2 Key B
- 1 Full-size PCI Express mini card slot
- 1 SATA-600
- 12 to 24 VDC power in
A Plus Serve ตัวแทนจำหน่ายสินค้าและอุปกรณ์ คอมพิวเตอร์อุตสาหกรรม สินค้าคุณภาพ ผลิตจากประเทศญี่ปุ่นและไต้หวัน
Introduction
Fast AI Computing Performance
The MANO561 is powered by the 12th Gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® Gold, or Intel® Celeron® processors (up to 65W) with the Intel® H610 chipset. Plus, it has two DDR4-3200/2666/2400 SO-DIMM sockets with a maximum of 64GB system memory.
Impressive Graphics for Multi-Displays
The MANO561 has Intel® UHD Graphics and provides two HDMI, one LVDS, one VGA port in support of triple displays. This feature can be widely applied in various fields, such as manufacturing monitoring, medical, digital signage, and self-service kiosks.

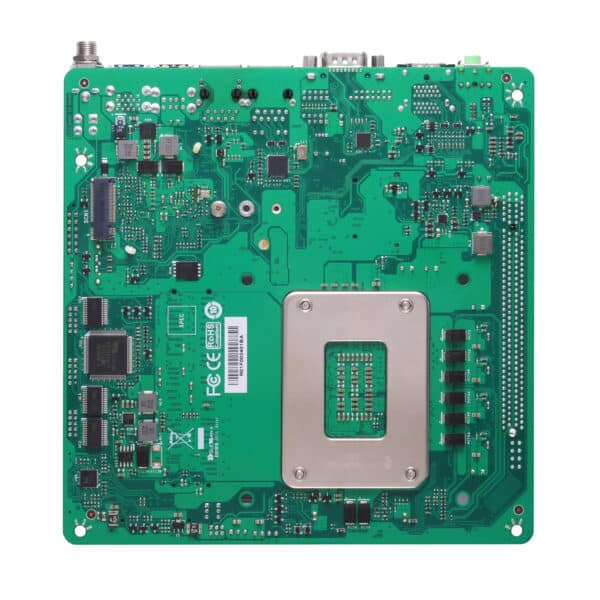

Superior Thin Mini-ITX Motherboard for 12th Gen Intel® Core™ Processor
The MANO561 is built with LGA1700 socket for the 12th generation Intel® Core™ processors. Aside from superior compute performance, this low-profile embedded motherboard delivers high-speed connectivity with flexible I/O, impressive graphics in support of triple displays, and high reliability by 12V-24V wide-range DC power to bridge the next-gen AIoT applications.
High-Speed Connectivity
Rugged Design and Protection
The MANO561 supports TPM 2.0 to secure hardware-based data. Besides, it can withstand a wide operating temperature range of 0°C to 60°C and supports 12-24V DC power-in for stable ongoing system operation.
Embedded Chassis for Low Power Mini-ITX SBC
To assist with customers’ industrial integration requirements, Axiomtek offers the ECM550, a thin Mini ITX chassis designed for the MANO561 to speed up time-to-market and reduce overall development costs.
