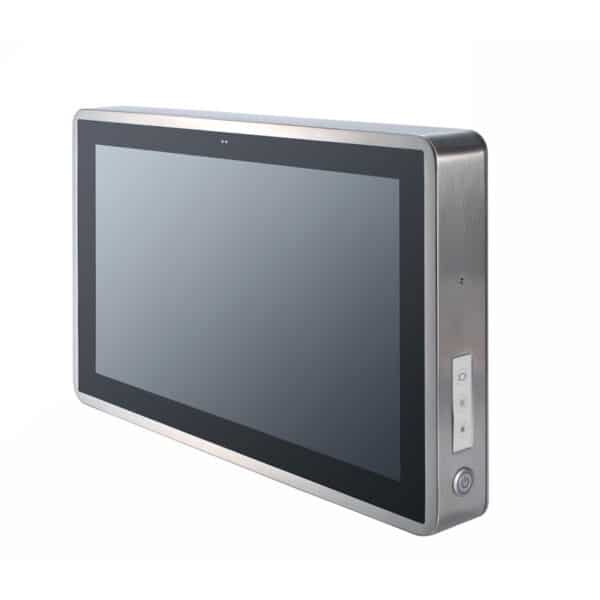

GOT818A-TGL-WCD

18.5″ FHD TFT IP66 & IP69K-rated Stainless Steel Fanless PCT

Panel Computer with Intel® Core™ i5-1145G7E or Celeron® 6305E

Processor and Flat Bezel Design (-20°C to +50°C)

international standard

Category: Fanless Panel PC

Features

A Plus Serve ตัวแทนจำหน่ายสินค้าและอุปกรณ์ คอมพิวเตอร์เกรดอุตสาหกรรม สินค้าคุณภาพ ผลิตจากประเทศญี่ปุ่นและไต้หวัน

LCD Panel	18.5" FHD TFT LCD 350 nits 1920 x 1080 pixels
CPU	Intel® Core™ i5-1145G7E 2.6 GHz or Celeron® 6305E 1.8GHz
Chipset	SoC integrated
System Memory	1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS	AMI
COM	2 x RS-232/422/485 (default RS-232, A-coded)
USB	4 x USB 2.0 (A-coded)
Ethernet	1 x 2.5GBASE-T Ethernet with Intel® I225 (TSN and X-coded)
Display	N/A
Audio	N/A
Storage	1 x 2.5" SATA SSD (9.5mm height)
Expansion	1 x M.2 Key E 2230 slot (with PCIe x1 and USB 2.0 supported)
Others	TPM 2.0 onboard
Touchscreen	Projected capacitive multi-touch
Enclosure	Stainless steel (SUS) 304 or 316 (optional)
Power Supply	1 x DC power connector (M12) 12 to 24 VDC
Power Comsumption	76.8W
Watchdog Timer	65536 levels, 0 to 65535 sec.
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Relative Humidity	10% - 95% @ +40°C, non-condensing
Vibration	1G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)	485.0 x 55 x 302.4 mm (19.1" x 2.2" x 11.91")
Weight (net/gross)	7.30 kg (16.09 lb)/10.5 kg (23.15 lb)
Certifications	CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A C1D2 (optional)
EOS	Windows® 10 IoT, Windows® 11 IoT
Mounting	VESA mount
