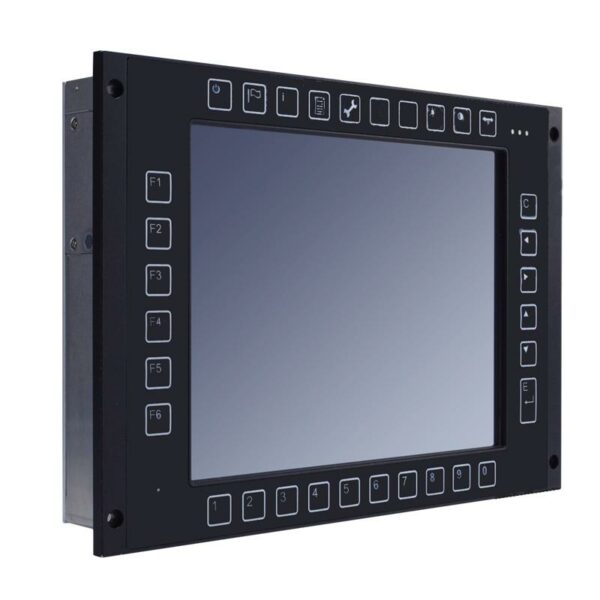

GOT710S

EN50155 S3 10.4″ SVGA TFT LCD Railway Fanless Touchscreen

Panel PC with Intel Atom® Processor E3845 1.91 GHz (-40°C to +70°C)

got715s-international standard

Datasheet (PDF)

Category: Transportation Computer

Description
Specifications

Features

Sunlight readable 10.4″ SVGA TFT LCD with 1000 nits of high brightness
Intel Atom® processor E3845 1.91 GHz
Alternative keypad control in the front bezel
M12-type lockable connectors design
Auto-dimming for different environments
-40°C to +70°C wide temperature range
Typical 24 to 110 VDC wide power input range, EN 50155
Class S3 20ms power interruption protection
EN 50155, EN 45545-2 certified for railway application

A Plus Serve ตัวแทนจำหน่ายสินค้าและอุปกรณ์ คอมพิวเตอร์เกรดอุตสาหกรรม สินค้าคุณภาพ ผลิตจากประเทศญี่ปุ่นและไต้หวัน

LCD Panel	10.4" TFT LCD 1000 nits 800 x 600 pixels
CPU	Intel Atom® processor E3845 1.91 GHz (Bay Trail)
Chipset	SoC integrated
System Memory	DDR3L 4GB onboard
BIOS	AMI
COM	2 x Isolated M12 A-coded RS-232/422/485 (isolation level 1.5kV)
USB	1 x M12 A-coded USB 2.0 (2 port signal)
Ethernet	2 x isolated M12 X-coded GbE (isolation level 1.5kV)
Display	N/A
Audio	1 x DB15 audio (line-in/mic-in/speaker-out/line-out)
Storage	16GB flash onboard 1 x mSATA
DIO	1 x Isolated terminal block DIO (6-in/2-out, isolation level 1.5kV)
CANbus	1 x Isolated DB9 CANbus (isolation level 1.5kV)
Expansion	2 x PCI Express Mini Card slot (slot2 for mSATA use only)
Others	N/A
Touchscreen	5-wire resistive touchscreen with or without keyboard
Front Bezel	IP65-rated aluminum front bezel and IP40-rated rear protection
Power Supply	1 x M12 A-coded DC-in Typical 24 to 110 VDC EN 50155 Class S3 20ms power interruption protection
Power Comsumption	24-110VDC, 1.4-0.29A
Watchdog Timer	255 levels, 1 to 255 seconds
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	10% to 95% @ +40°C, non-condensing
Vibration	N/A
Dimensions (W x D x H)	310 x 61.5 x 214 mm (12.20" x 2.42" x 8.43")
Weight (net/gross)	2.6kg (5.73lb)/4.4kg (9.7lb)
Certifications	CE/FCC Class A, EN 50155, EN 50121-3-2, EN 61373, EN 45545-2 certified and UIC-612-01 Keypad layout complied
EOS	Windows® 10, Windows® 10 IoT, Windows® 7, WES 7
Mounting	Wall mount VESA mount
