EW50 Series
EW50 - Image 2
EW50 Series

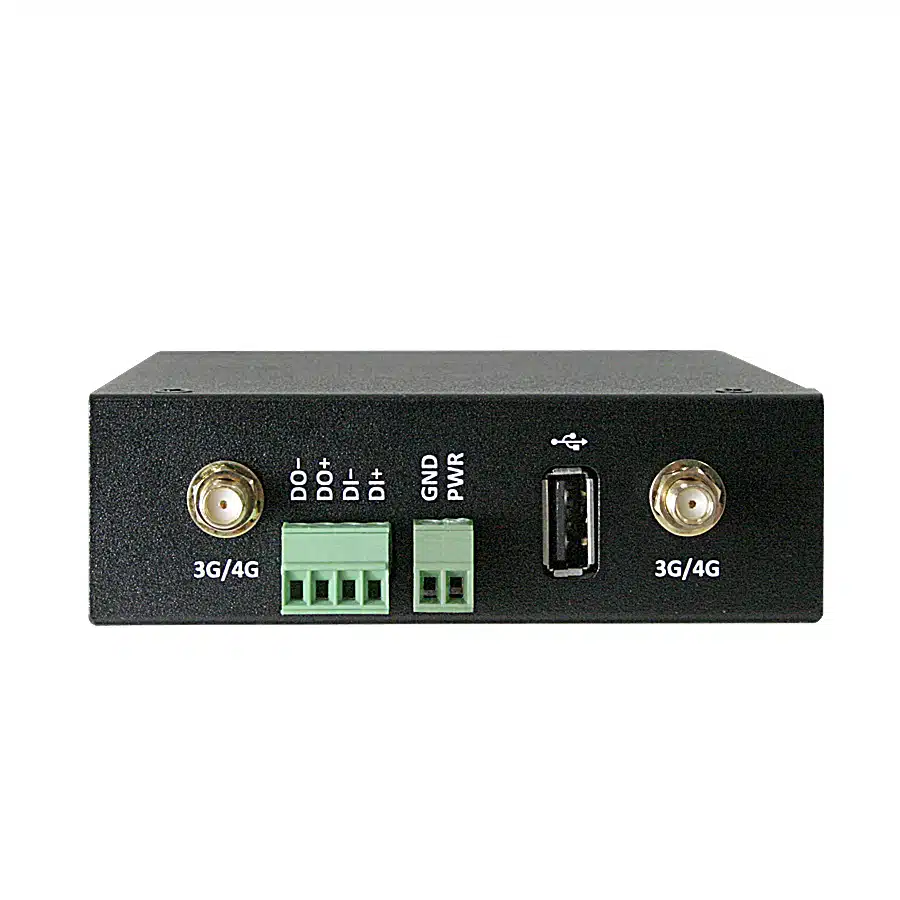

EW50

Industrial LTE Cellular Gateway

  • Primary and Backup connectivity
  • Global LTE and dual SIM cards for failover
  • Comprehensive interface for field connectivity
  • Low power consumption



Datasheet (PDF)
Category:

Feature

The EW50 is an intelligent industrial grade gateway designed for critical infrastructure and industrial applications. It provides reliable and secure remote connectivity designed for harsh environments, giving operations and IT real-time awareness with remote monitoring.

Moreover, it delivers best-in-class multi-path connectivity with Wireless, Ethernet, serial, and digital I/O to satisfy most applications. Global LTE options make it easy to get connected.

Industrial LTE Cellular Gateway | Promotion Page EW50 Series

Specifications

Cellular Interface

Standards
  • Cellular Frequency Bands: (Please check Frequency Bands Region Codes)
  • LTE Cat. 4: FDD-LTE, TDD-LTE, Transfer rate (max): LTE FDD: 150Mbps down; 50Mbps up LTE TDD: 130Mbps down; 35Mbps up
  • 3G: WCDMA, Transfer rate (max): 42Mbps down; 5.76Mbps up
  • 2G: GSM/EDGE, Edge Transfer rate (max): 236.8Kbps down & up
Antenna connector
  • 2 x SMA Female
SIM Slot
  • 2

Ethernet

Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
Ports
  • 2 x RJ45 GE
Physical Layer
  • 10/100/1000BASE-T

Serial

Ports
  • 2 x RS-232/RS-485

I/O

DI/DO
  • 1 x Digital In ("Logic 0": 0-2V, "Logic 1": 5V-30V)
  • 1 x Digital Out (Relay Mode, up to 30V/1A)

USB

Standards
  • USB 2.0
Ports
  • 1 x USB Type A

Micro SD

Capacity
  • Max. Storage of 64GB

Functions

VLAN
  • Port-based, Tag-based VLAN
Port Forwarding
  • Virtual Server/Computer (1-1), DMZ Host, PPTP/L2TP/IPSec Pass-through
Routing
  • Static, Dynamic: RIP1/RIP2, OSPF, BGP
VPN
  • IPSec, OpenVPN, PPTP, L2TP, GRE
Firewall
  • SPI Firewall with Stealth Mode, IPS
Event Engine/Event Handling
  • Managing/Notifying Events: DI, DO, Modbus, SMS, Syslog, SNMP Trap, Email Alert, Reboot

Cloud Development Platform

Support Microsoft Azure

Field Communication

Virtual COM
  • RFC2217, TCP Client, TCP Server, UDP
Modbus
  • Gateway for Modbus TCP, Modbus RTU/ASCII Master/Slave Access
  • Slave for Device Status/Information Access
Data Logging
  • Sniffer, Off-line/Full-time Proxy, Mixed modes
Data Interchange
  • MQTT Broker, MQTT Client

Power

Input
  • DC 9V-36V
Power consumption
  • 7.0W Max.

Mechanical

Dimension
  • 31 x 99 x 130.6mm (w/o mounting brackets)
Weight
  • 0.9Kg (1.98lb)
Installation
  • DIN-Rail

Environment

Operating Temperature
  • -30 to 70°C (-22 to 158°F)
Storage Temperature
  • -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
  • 5% to 95%

Regulatory Approvals

Safety
  • EN 60950-1
  • EN 62368-1: 2014
Emissions/Immunity
  • EW50-TA FCC/NCC/RCM
  • EW50-EUS FCC/CE/NBTC/NTC/KC*/SDPPI**
  • EW50-JP VCCI/JATE
Note:
  • KC*: EW50 doesn't support SKT SIM card, suggest to use Global SIM card or Non-SKT SIM Card. SDPPI**: Indonesia Radio Type Approval 78410/SDPPI/2021 13696
