EL8020 Series

Technology

Standards

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T

Forward and Filtering Rate

• 14,880pps for 10Mbps
• 148,810pps for 100Mbps
• 1,488,100pps for 1000Mbps

Processing Type

• Auto Negotiation
• Auto MDI/MDIX

Power

Input

• 12-48VDC

Power Consumption

• 0.912W Max
• 76mA@12VDC
• 38mA@24VDC
• 19mA@48VDC

Protection

• Overload Current Protection
• Reverse Polarity Protection

Mechanical

Casing

• Aluminum Case
• IP30

Dimensions

• 35.8 x 90 x 100mm (W x D x H) (1.41" x 3.54" x 3.94")

Weight

• 0.23Kg (0.51lbs.)

Installation

• DIN-Rail

Interface

Ethernet Ports

• 10/100/1000BASE-TX: 1 port
• 100/1000 SFP: 1 port

LED Indicators

• Per Unit: Power 1, Power 2, Fault, LFPT
• Per Port: Link/Activity

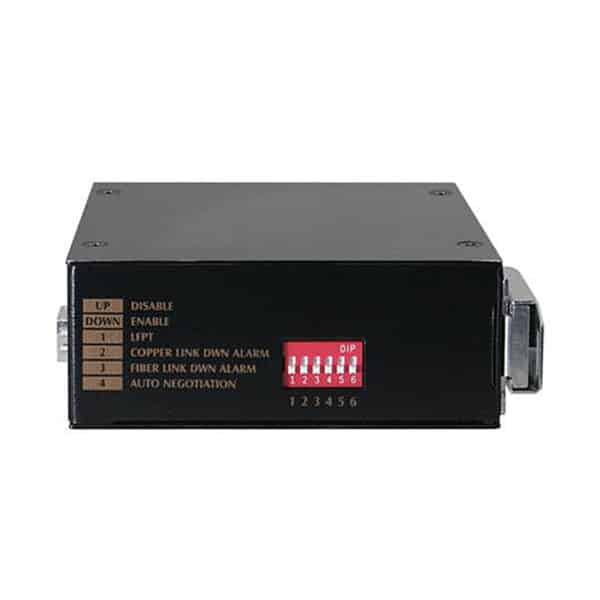

DIP Switches

• No.1: LFPT On/Off
• No.2: Alarm for copper port On/Off
• No.3: Alarm for fiber port On/Off
• No.4: Auto-negotiation for fiber port On/Off

Alarm Contact

• Relay contact rating with current 0.6A/30VDC

Environment

Operating Temperature

• -40 to 75°C (-40 to 167°F)

Storage Temperature

• -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

• 5% to 95% (non-condensing)

Regulatory Approvals

ISO

• Manufactured in an ISO 9001 facility

Safety

• UL 61010

EMI

• FCC Part 15B Class A
• VCCI Class A
• EN 55032
• EN 61000-3-2
• EN 61000-3-3
• EN 61000-6-3

EMS

• EN 61000-6-2
• EN 61000-4-2 (ESD Standards)
• EN 61000-4-3 (Radiated FRI Standards)
• EN 61000-4-4 (Burst Standards)
• EN 61000-4-5 (Surge Standards)
• EN 61000-4-6 (Induced RFI Standards)
• EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliances

• IEC 60068-2-6 Fc (Vibration)
• IEC 60068-2-27 Ea (Shock)
• FED STD 101C Method 5007.1 (Free fall w/ package)
