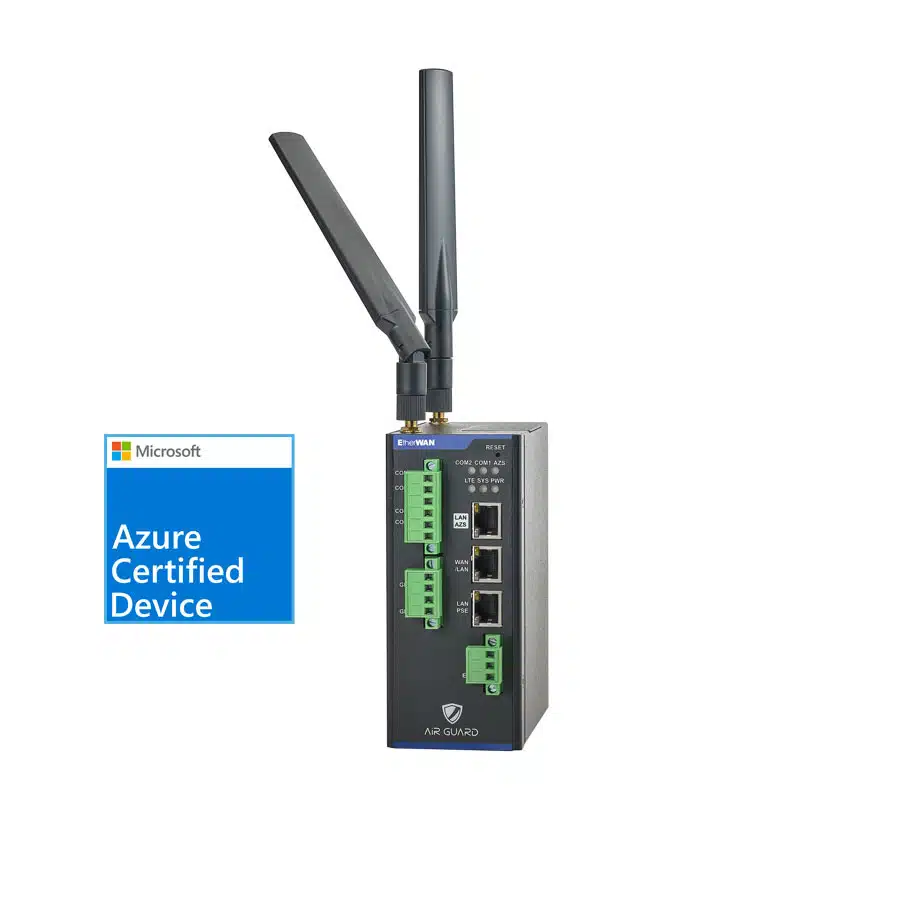

AiR GUARD

AiR GUARD

    Industrial IoT Cellular Smart Security Gateway

    • Microsoft Azure Sphere Security solution
    • PoE PSE 30W smart Modbus gateway
    • Edge to Cloud (Azure / AWS / Google)
    • RESTful API



    Datasheet (PDF)
    Category:

    Feature

    Functions

    Cellular

    • 3GPP, 3G/4G

    Ether-WAN

    • Dynamic IP, Static IP, PPPoE

    Protocols

    • DHCP Server. LLDP

    Port Forwarding

    • NAT, Virtual Server/Computer

    Network Management

    Configuration

    • Web Console, SSH, HTTPS

    System

    • Firmware upgrade, configuration backup & restore, reboot & reset default

    Diagnostic

    • Ping, Traceroute

    Security

    VPN

    • OpenVPN: Server / Client

    Field Communication

    Modbus

    • Modbus TCP, Modbus RTU Master

    Data Interchange

    • MQTT Client

    RESTful API

    • Easy to acquire data or remote configure settings

    Data Tag Engine

    • Front-end device raw data to convert to be logical data by Tag based and specified Tag data format combination to the cloud.

    Service

    OTA F/W upgrade automatically

    • Use Cellular or Ethernet WAN to update new version system firmware and Azure Sphere Security

    A Plus Serve ตัวแทนจำหน่ายสินค้าและอุปกรณ์ คอมพิวเตอร์เกรดอุตสาหกรรม สินค้าคุณภาพ ผลิตจากประเทศญี่ปุ่นและไต้หวัน

    Specifications

    Cellular

    Standards
    • 4G LTE: FDD-LTE, TDD-LTE, Transfer rate (max):
    • LTE FDD: 150Mbps down; 50Mbps up
    • LTE TDD: 130Mbps down; 35Mbps up 3G: WCDMA, Transfer rate (max): 42Mbps down; 5.76Mbps up 2G: GSM/EDGE, Edge Transfer rate (max): 236.8Kbps down & up
    SIM Slot
    • 1 x nano SIM card slot
    Antenna connector
    • 2 x SMA Female

    Ethernet

    Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE802.3at Power over Ethernet
    Ports
    • 1 x 10/100/1000 PoE 802.3at PSE + 1x 100/1000 BASE-T(X) + 1 x 10/100BASE-T(X)

    Serial

    Ports
    • 2 x RS485

    I/O

    DI/DO
    • 1 x Digital In (“Logic 0”: 0-2V, “Logic 1”: 5-30V)
    • 1 x Digital Out (Relay Mode, up to 30V/1A)

    Micro SD

    Capacity
    • Max. Storage of 64GB

    LED Indicators

    System
    • Power , System status, LTE status , AZS (Azure Sphere) , COM 1, COM 2

    Power

    Input
    • 12-24VDC
    Power consumption
    • 18 Watts (without PoE active)

    Physical

    Casing Material
    • Metal case
    IP Rating
    • IP30
    Dimensions
    • 138 x 110 x 45mm (HxDxW)
    Weight
    • 0.7Kg
    Installation Type
    • DIN-Rail mounting

    Environment Limits

    Operating Temp.
    • -40 to 75°C (-40 to 167°F)
    Storage Temp.
    • -40 to 85°C (-40 to 185°F)
    Relative Humidity
    • 5% to 95% (non-condensing)

    Regulatory Approvals

    Safety
    • EN IEC 62368-1:2020+A11:2020
    Emissions/Immunity
    • EU: CE
    • UK: UKCA
    • US: FCC part 15B
    • Taiwan: NCC
    • Singapore: IMDA
    • Thailand: NBTC
    • Australia: RCM
